PAYLOADS

Gimbal Mount Payloads.

Camera solutions for incredible data gathering from all angles.

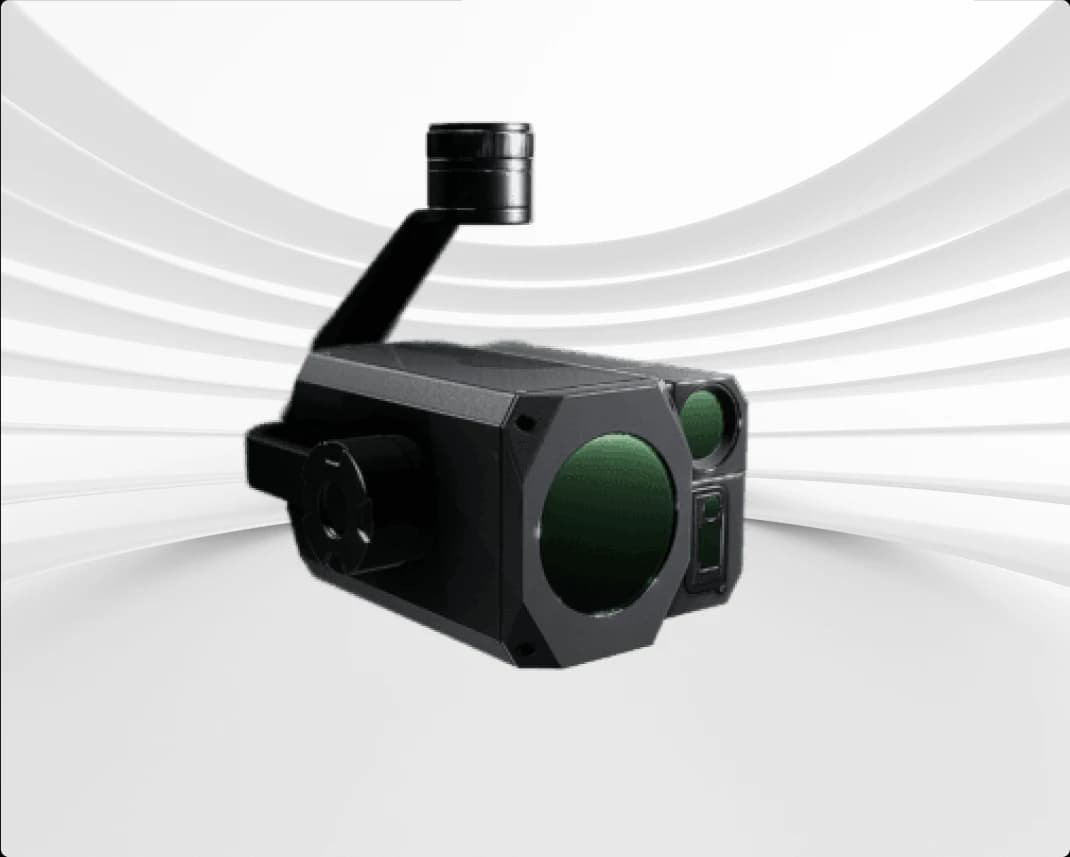

M30T

The M30T has an incredible 30X optical zoom with the SONY STARVIS CMOS sensor which supports starlight night vision and has super image stabilisation. It also includes a thermal imager with a resolution of 640*512. Combined with the powerful AI algorithm, the M30T has sensitive auto human and car detection and a stable AI tracking with 1000m laser range finder. The truly all in one camera.

Optical zoom

30X

Resolution

640*512

Range finder

1000m

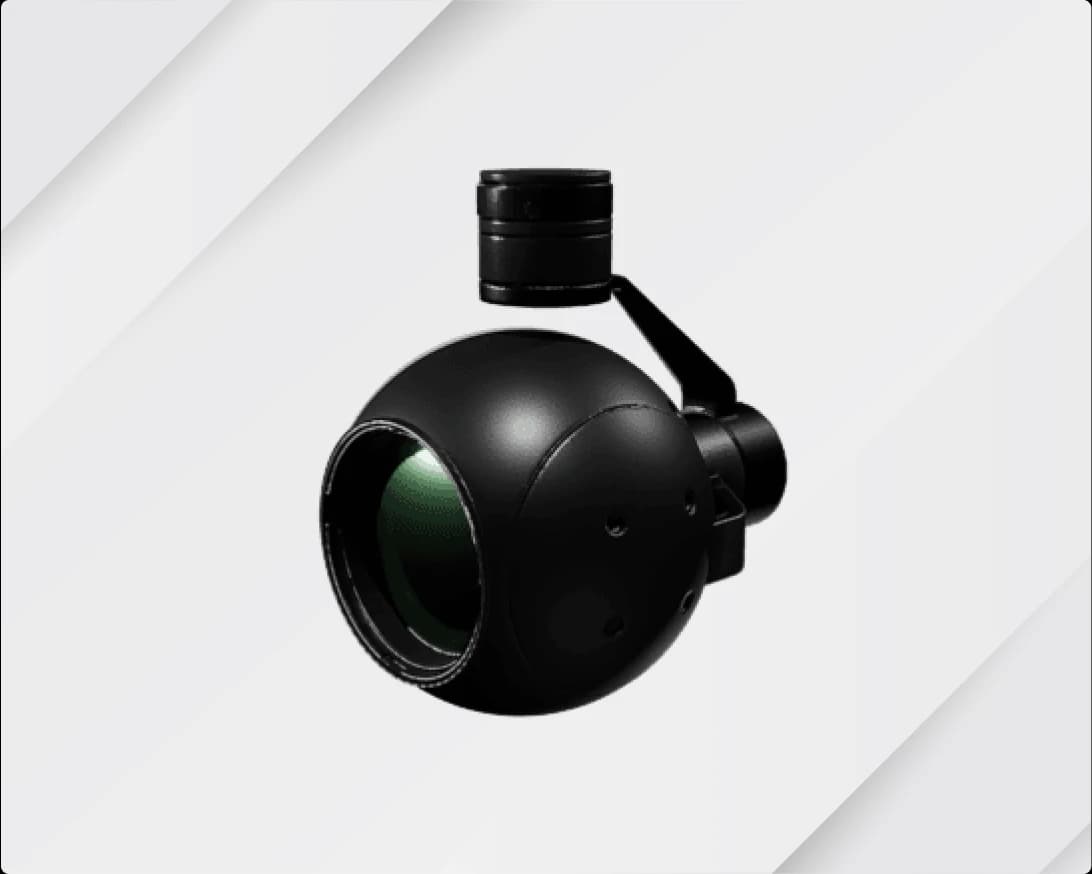

MT50

MT50 is a 3-axis stabilised gimbal camera which is made from an aviation grade aluminium with a stronger anti-interference performance. With 50mm 12μm 640*512 Pixel IR thermal sensor, the IR detect range is up to 6000m. Moreover, MT50 has an incredible AI autonomous tracking which will greatly increase the tracking efficiency. Thermometry / radiometric version is optional and supports vast temperature range spectrum with the temperature reading being presented in real-time on screen.

Optical zoom

30X

Resolution

640*512

Range finder

6000m

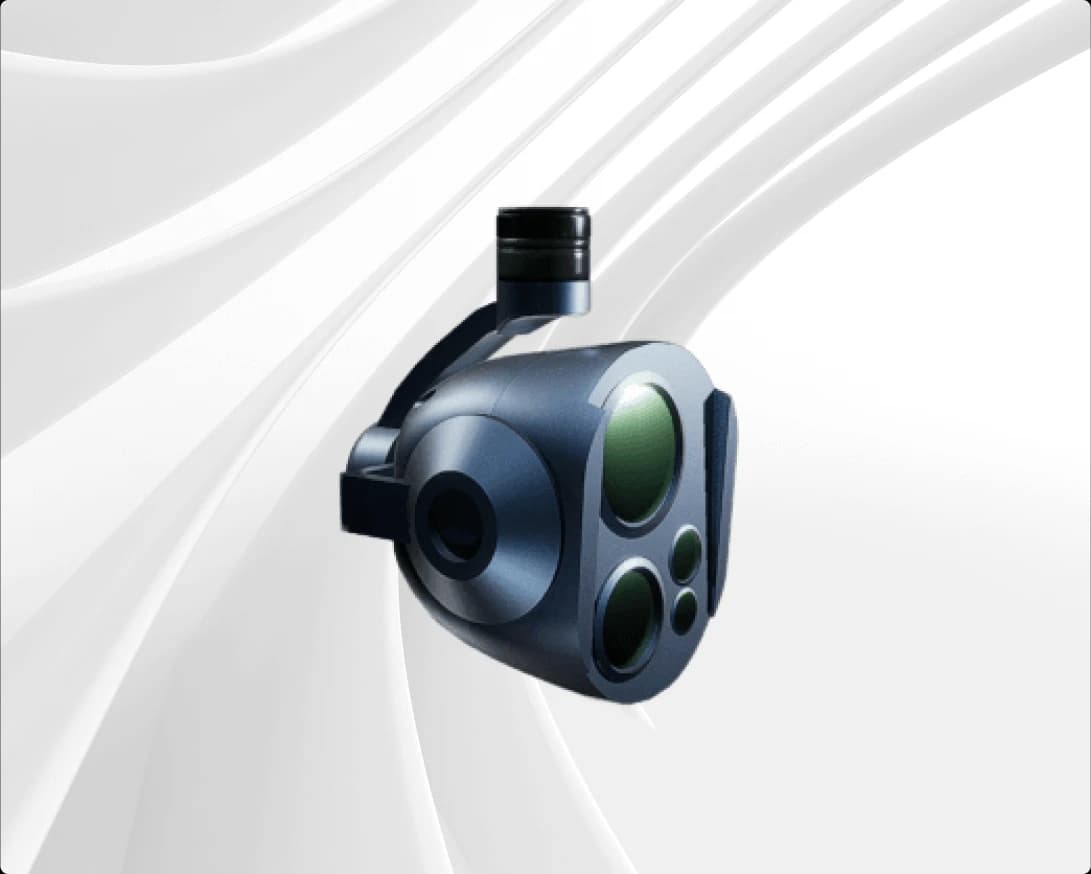

M30TIR

M30TIR is a high level dual-sensor gimbal camera for long range surveillance and inspection. It integrates a SONY 1/1.8" Type STARVIS night vision camera with a 30 times optical zoom and a 50mm 1280*1024 12μm IR thermal camera. Supports stable target tracking with its 3-axis high-precision gimbal. The M30TIR is housed in an aluminium alloy housing with anti-interference and better heat dissipation properties. Ideal for long range inspection, surveillance, search and rescue and other industrial applications.

Optical zoom

30X

Resolution

1280*1024

Range finder

1000m

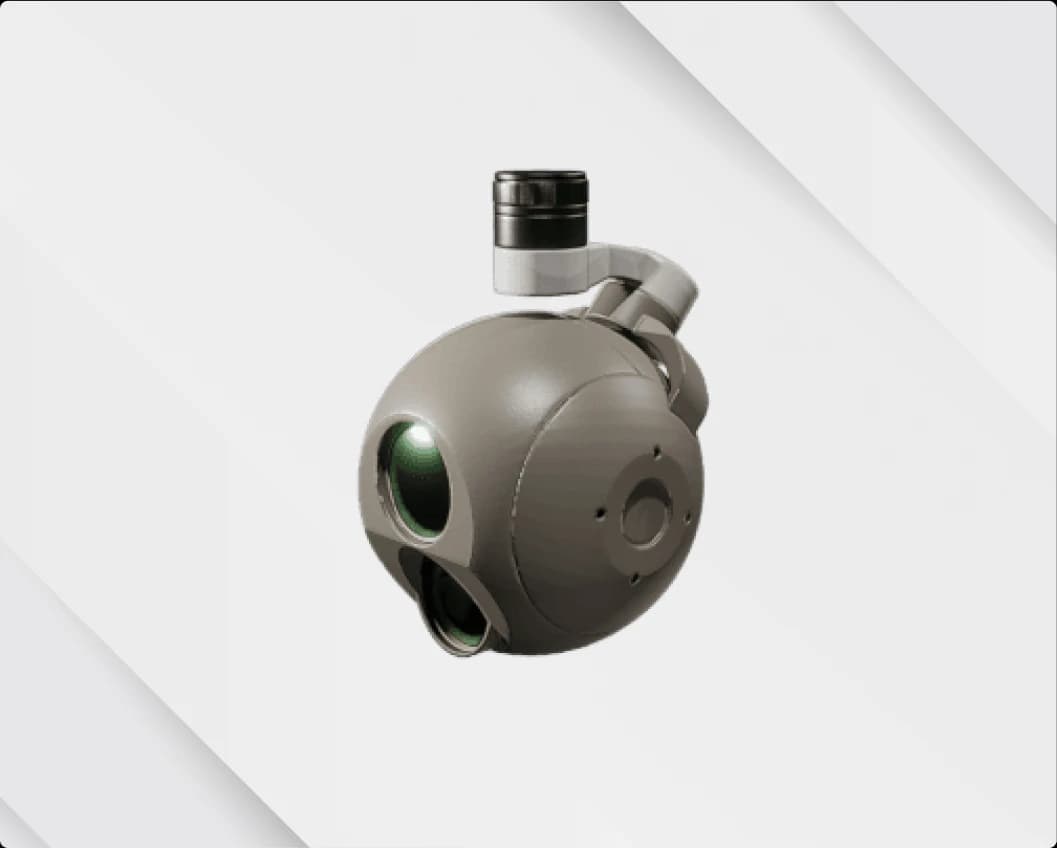

M30TIRM

M30TIRM pro is a powerful 3-axis gimbal camera which integrates a 30 times optical zoom, a 640*480 thermal camera and a laser rangefinder. The 3-axis gimbal based on FOC technology features high stability, accuracy and sensitivity. The image is very stable even at 30 times optical zoom. Detecting by heat source, the 25mm thermal camera can reveal the damage of buildings, fire spark in forest, the location of people or animal and more. The high-precision laser rangefinder can accurately resolve the GPS location and distance of the object within 3000 meters, this information will display on screen automatically.

Optical zoom

30X

Resolution

640*480

Range finder

3000m

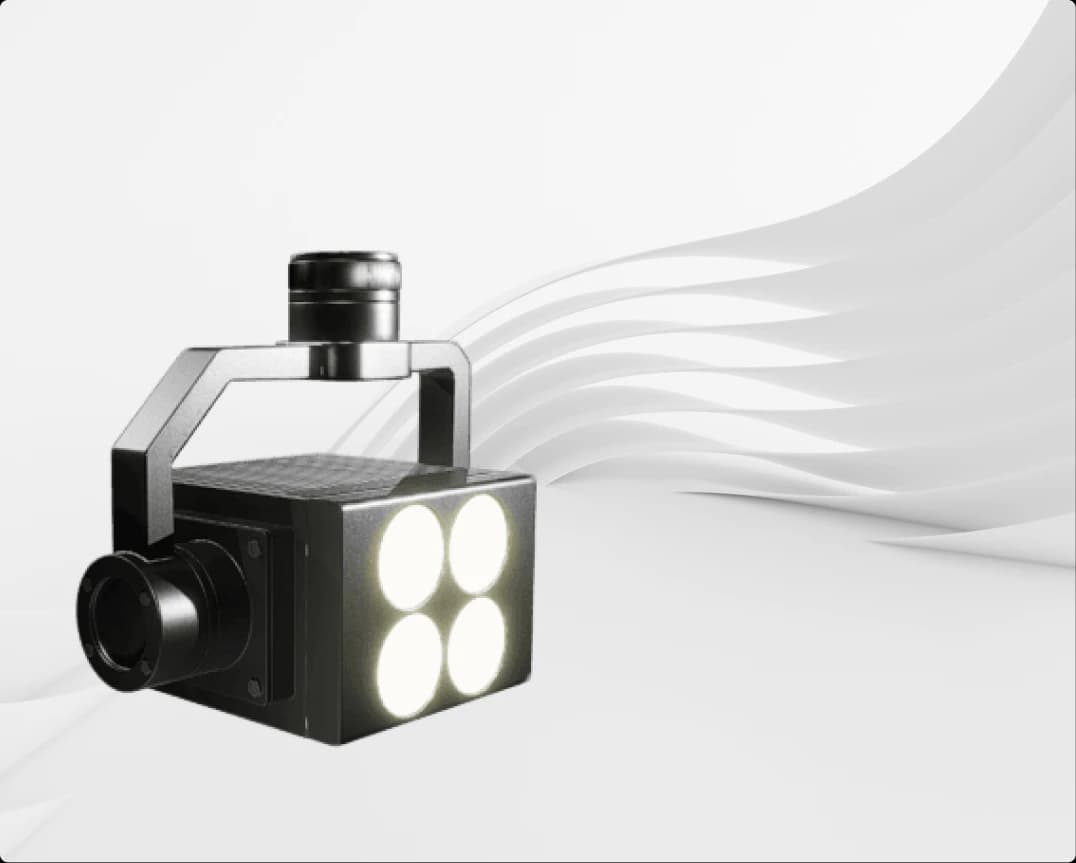

M-1LP Searchlight Device

M-1LP Searchlight Device features 2-axis stabilised gimbal with 4 pcs LED illuminating system with luminous flux of up to 4000lm. Integrated aluminium alloy housing with built-in cooling fan are optimised for heat dissipation and anti-interference. Vibration is eliminated using four damping balls and a lightweight damping board. 300° rotation remains possible through gimbal rotation. It has an operating range of up to 150m and is ideal for lighting the space at night or in utter poor light environment for users in night surveillance, emergency response, search and rescue, firefighting and more.

Brightness

4000lm

Rotation

300°

Range

150m

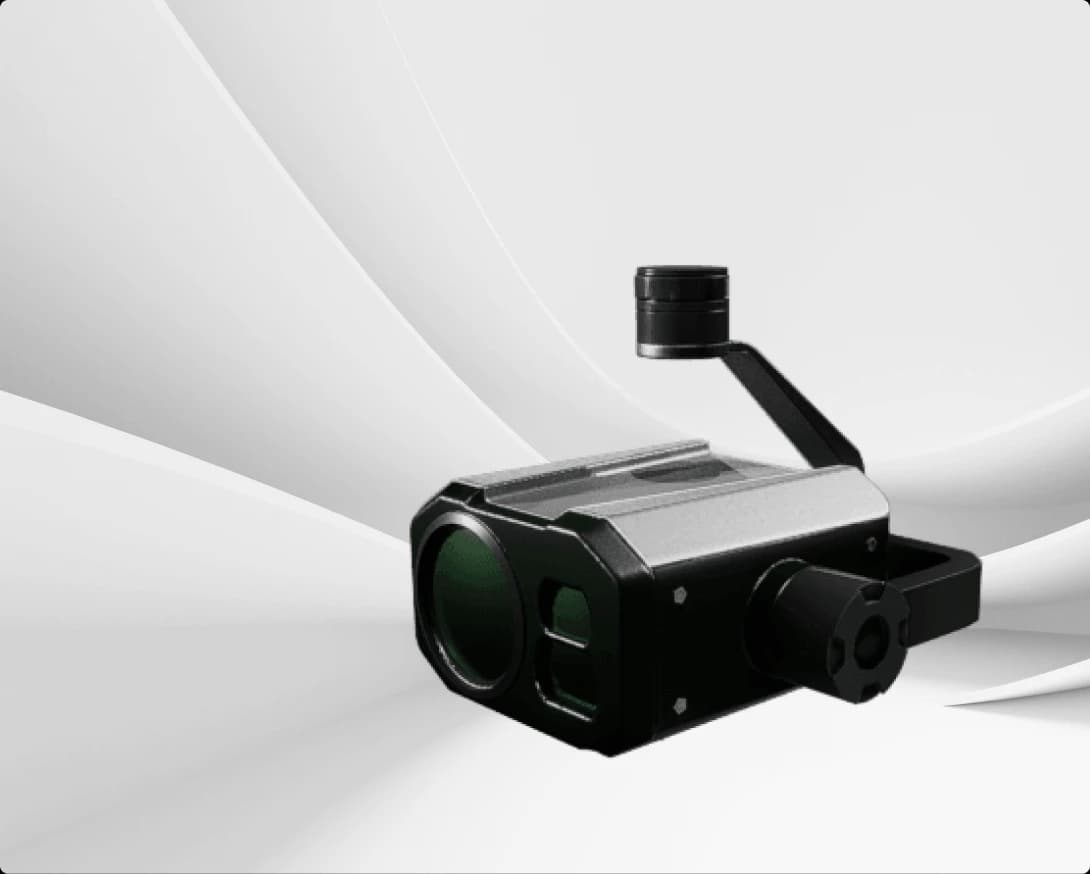

M30TM-LRF

M30TM-LRF is a highly optimised 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.02° powered by a dedicated processor. The camera features a 30 times optical zoom, object tracking and GPS location resolving

Optical zoom

30X

Resolution

640*512

Range finder

6000m

640*512

Range finder

6000m
