PrototypePrototype specifications - measured or expected on the flight-tested Vigil-6 prototype. Figures may change as the platform moves toward series production.
Long Range Transmission System
Transmission Range
30 km (H16 Pro module)
Video Feed
1080p
Real Time
1.4 GHz

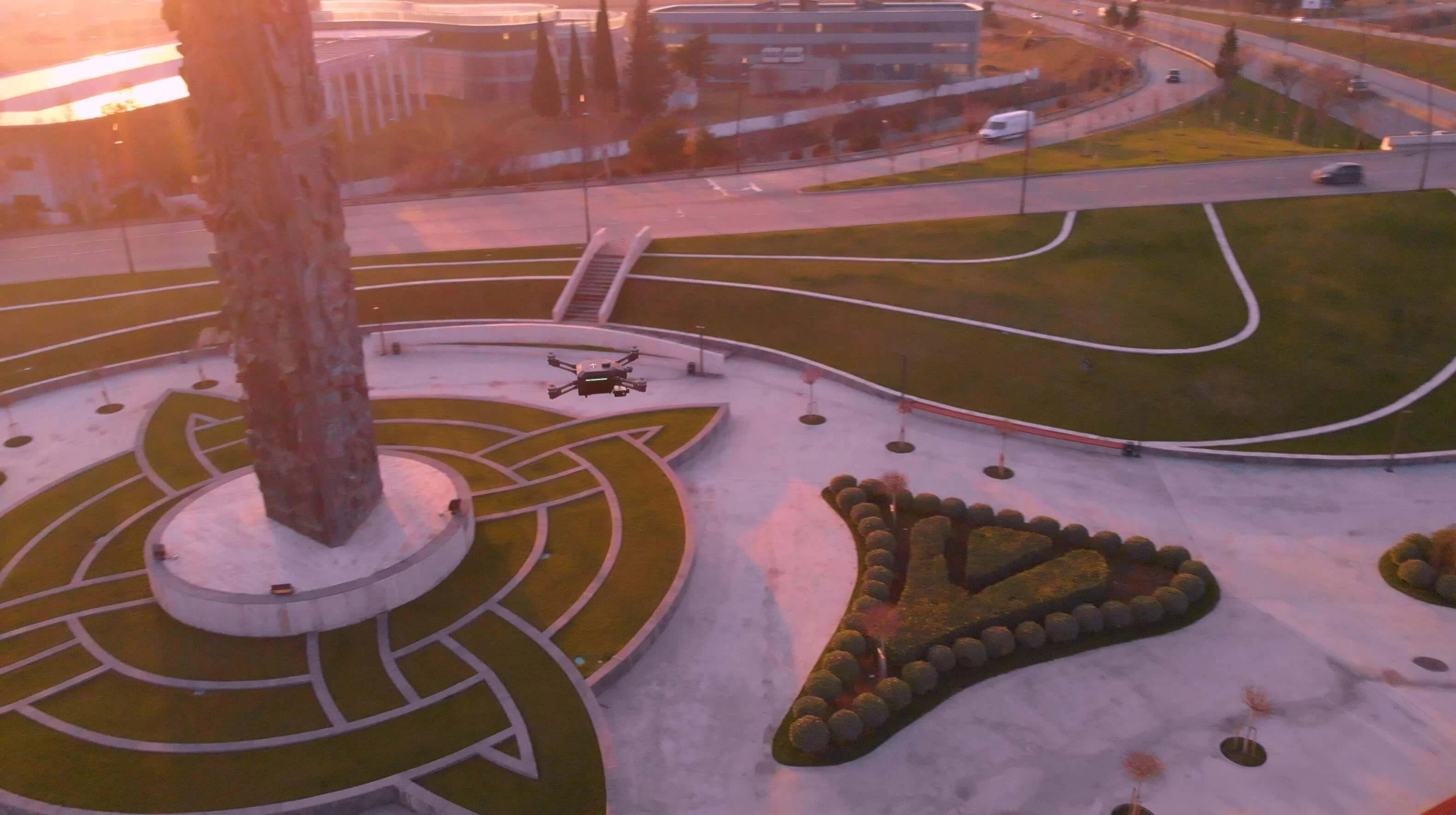

Cellular Enabled
Tap into the power of Cellular Connection and discover the new level of UAV application.
Secure 4G connectivity - self-hosted, no third-party data access

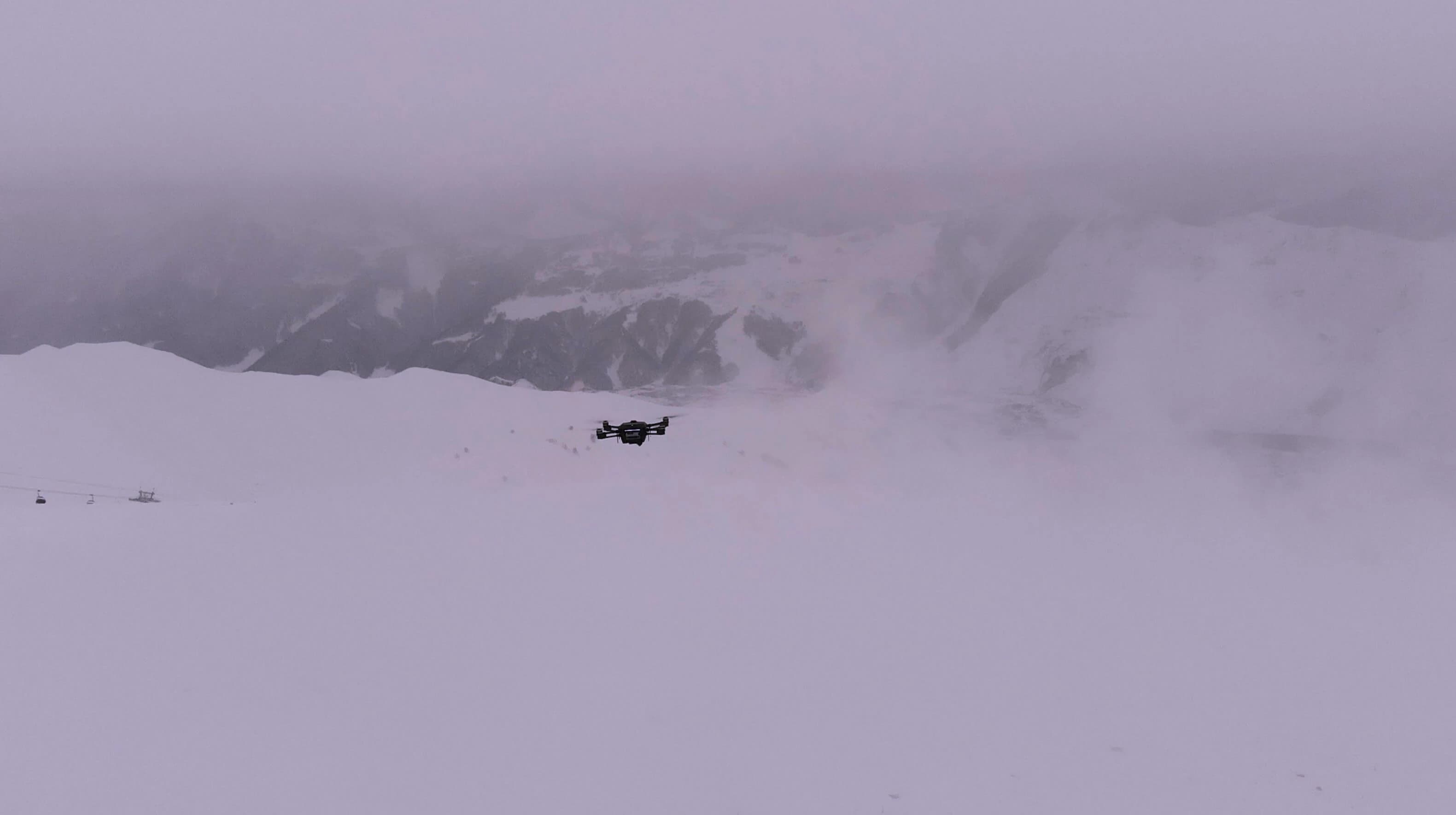

Flight Performance
45 min
Flight Time
54 km/h
Wind Resistance
70 km/h
Max. Speed
6 m/s
Max. Vertical Speed
-20°C to +40°C
Operating Temperature Range
Safety and Reliability

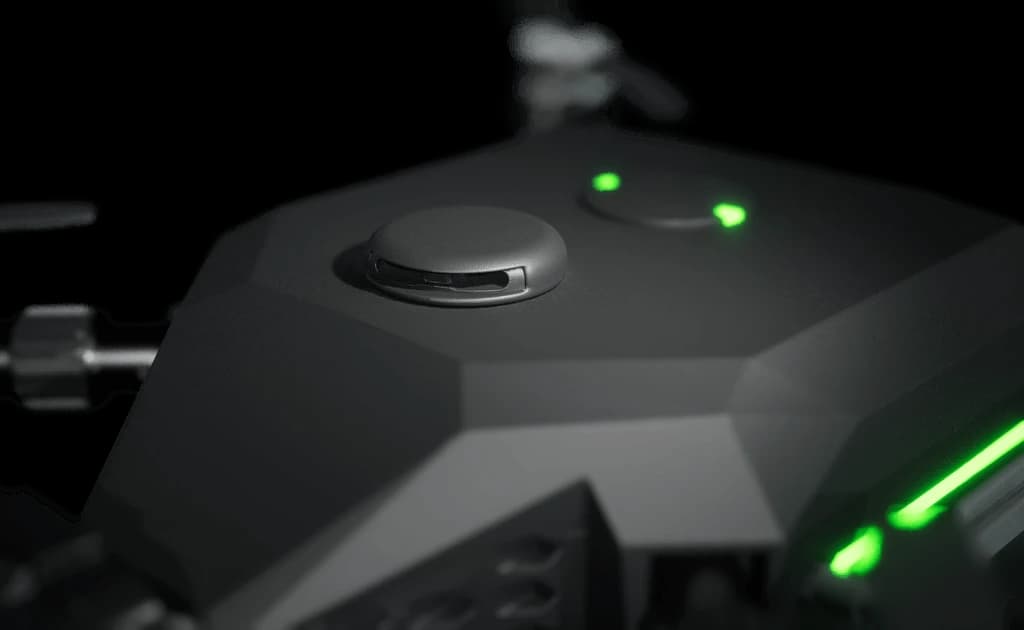

360° Obstacle Scanner
To enhance in-flight safety, the mechanically spinning 360° sensor appears at the top of the drone that constantly scans the entire lateral plain of the drone. Offering an obstacle detection range of 15 m, with options to customise the drones sensing range via the M-Ground Control. Even in difficult operating environments, this 360° sensing system helps keep the drone and the mission safe.
Optional upgrade: perpendicular wire detection scanner available - detects any wire type. Price on request.

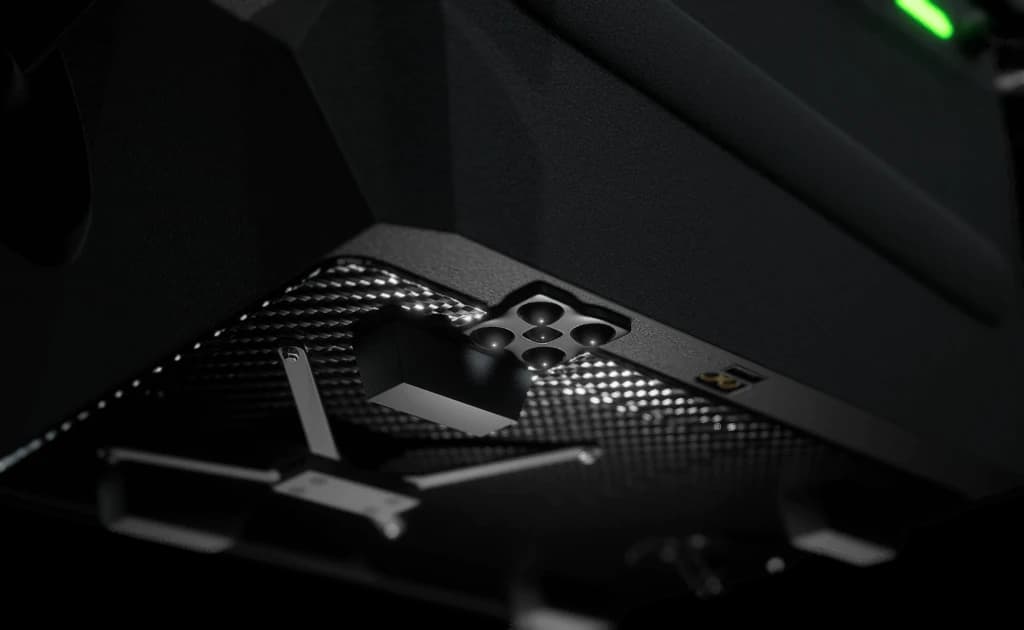

LiDAR Altimeter
To enhance in-flight safety and add additional precision, the bottom mounted LiDAR altimeter offers an incredibly precise altitude hold capability up to 15 m. Ideal for low altitude flight missions. It lets the drone constantly follow the grounds terrain and adjust the altitude according to the terrain bellow.

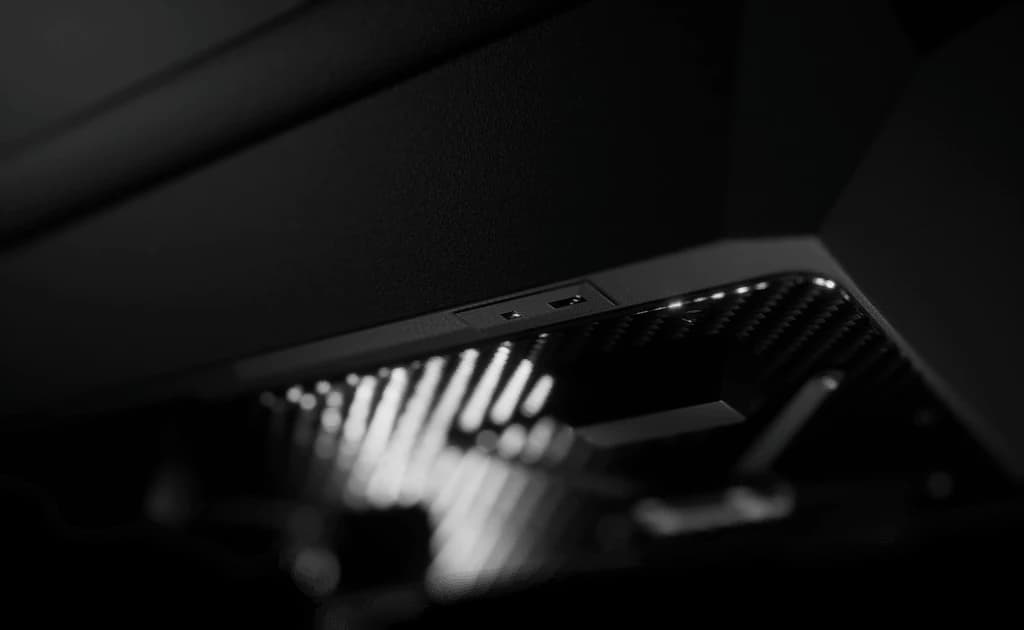

Point Hold Sensor
During low altitude hover of up to 2 m, the optical flow sensor will lock on to the certain ground feature and keep the drone fixed at one point. Essential safety feature that prevents the drone from even ever so slightly drifting around close to the ground and potentially creating a hazard to its surroundings.
Smart Return to Home
In an unlikely event of complete signal loss due to various possible factors, the drone will automatically return back from where it has took off. The smart part of the feature is that if there are obstacles on the way back to the take off point, the drones smart 360° obstacles avoidance system will sense and either overfly or fly around the obstacle. Incredibly important feature especially during flight over urban areas.

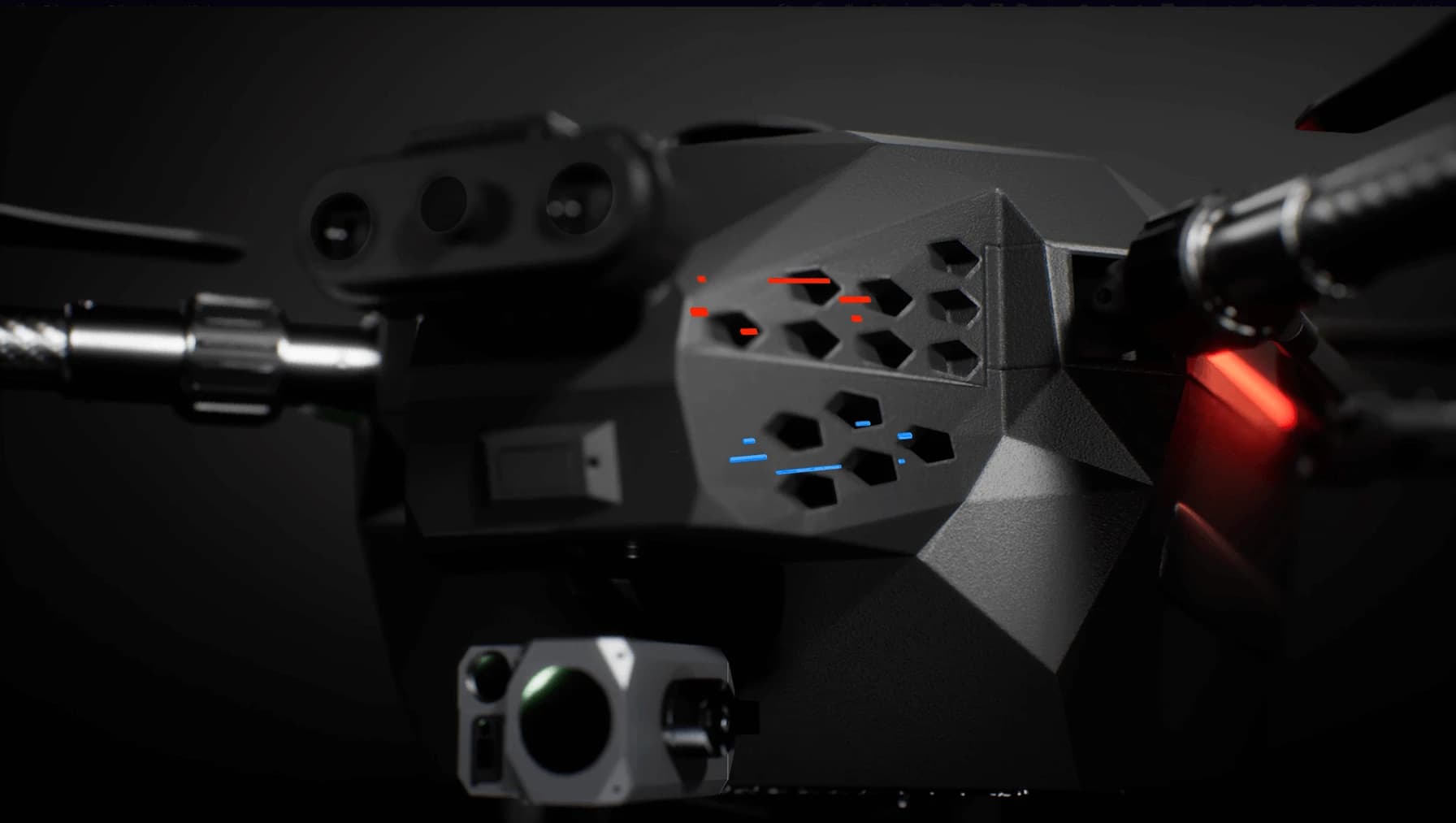

Cooling System
Passive on board Cooling
During the flight, the bottom front grills let the cool outside air channel through to the battery and vent out the back section for optimal battery cooling. The optimal battery cooling results in its improved performance and thus a longer flight time.The ability to use passive cooling system resulted in a great weight saving which further improved the flight time and overall performance.

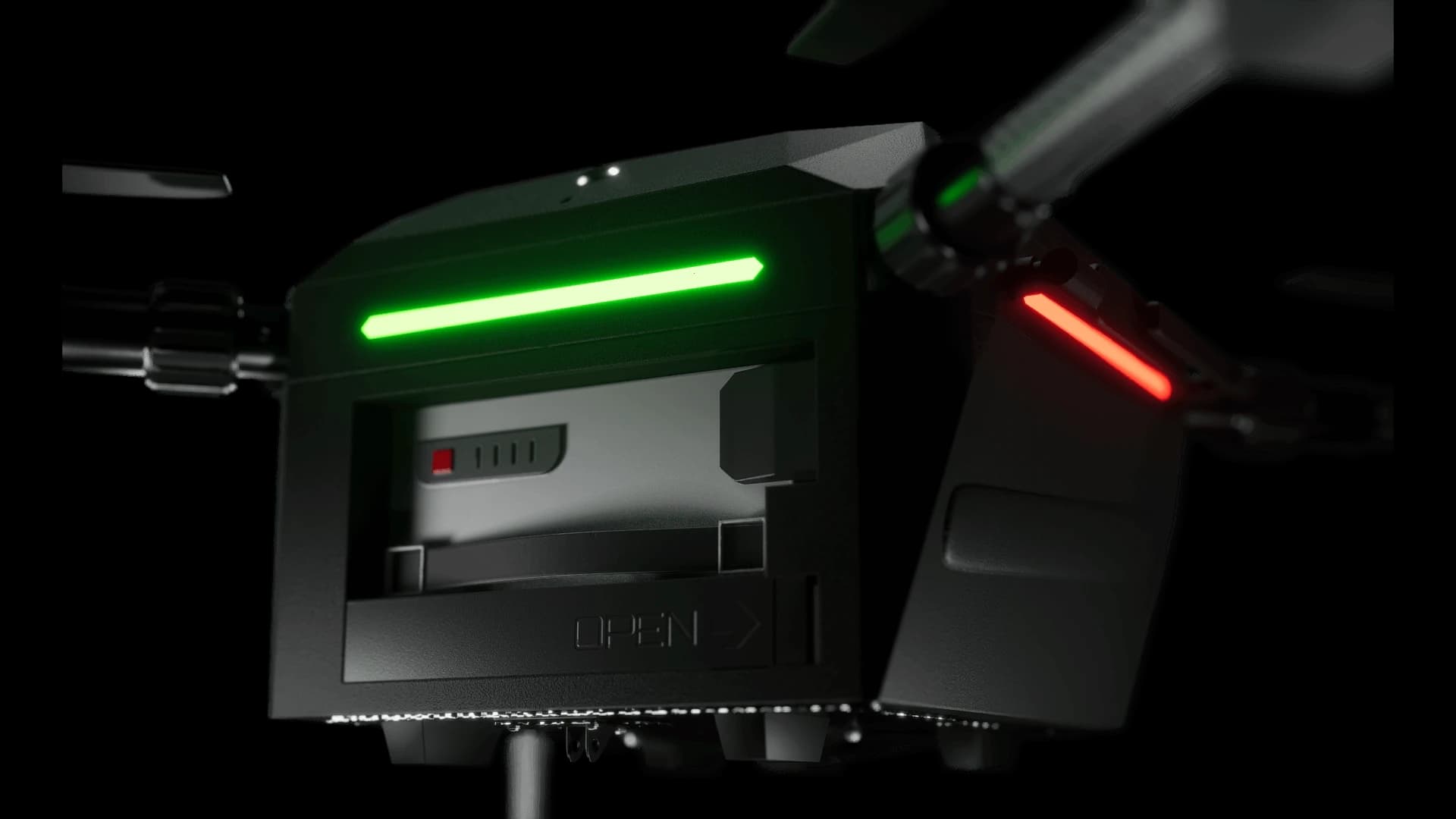

Active on board Cooling
For certain electronic parts with small surface area to volume ratio that heat up during the use required an active cooling. Special light weight fans within the drones body circulate the air by forcing a constant current of cool outside air and blowing out the hot air out. This process keeps the onboard electronics cool for optimal performance.

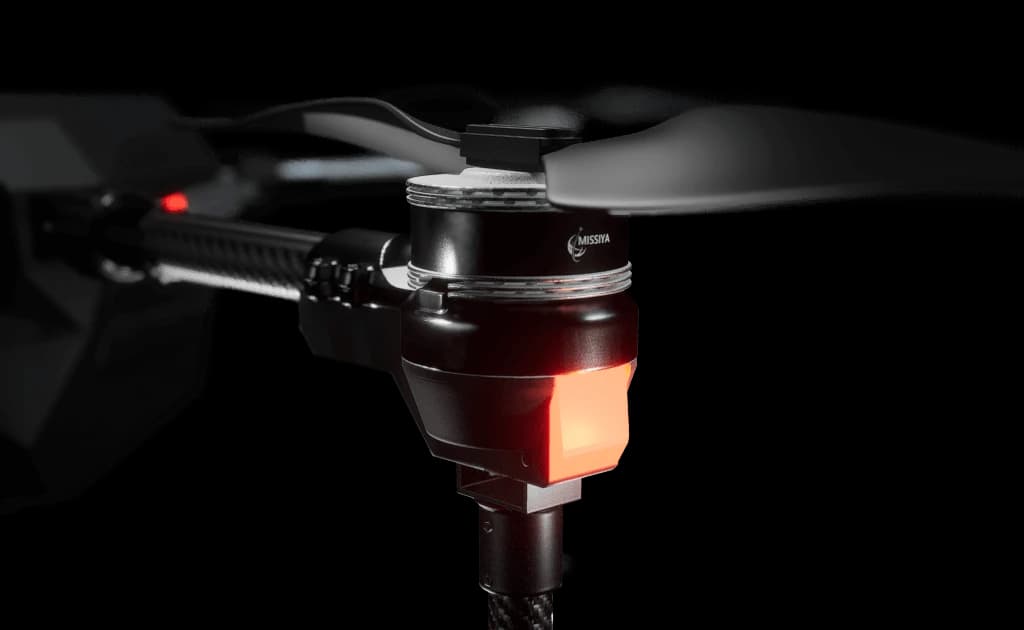

Bleed Air Motor Cooling
One of the most important and perhaps most heated part of the drone is its motors. This is why we have developed our own unique way of cooling them. By positioning special air ducts bellow the motors, these air ducts guide the cool bleed air from the propeller thrust to the motors. Truly a unique system which is both incredibly light and effective at cooling the motors. The result: greatly improved performance, safety and a much longer motor life.
Anti Collision Protection
Navigation Lights
Landing Lights
AirSense ADS-B Receiver

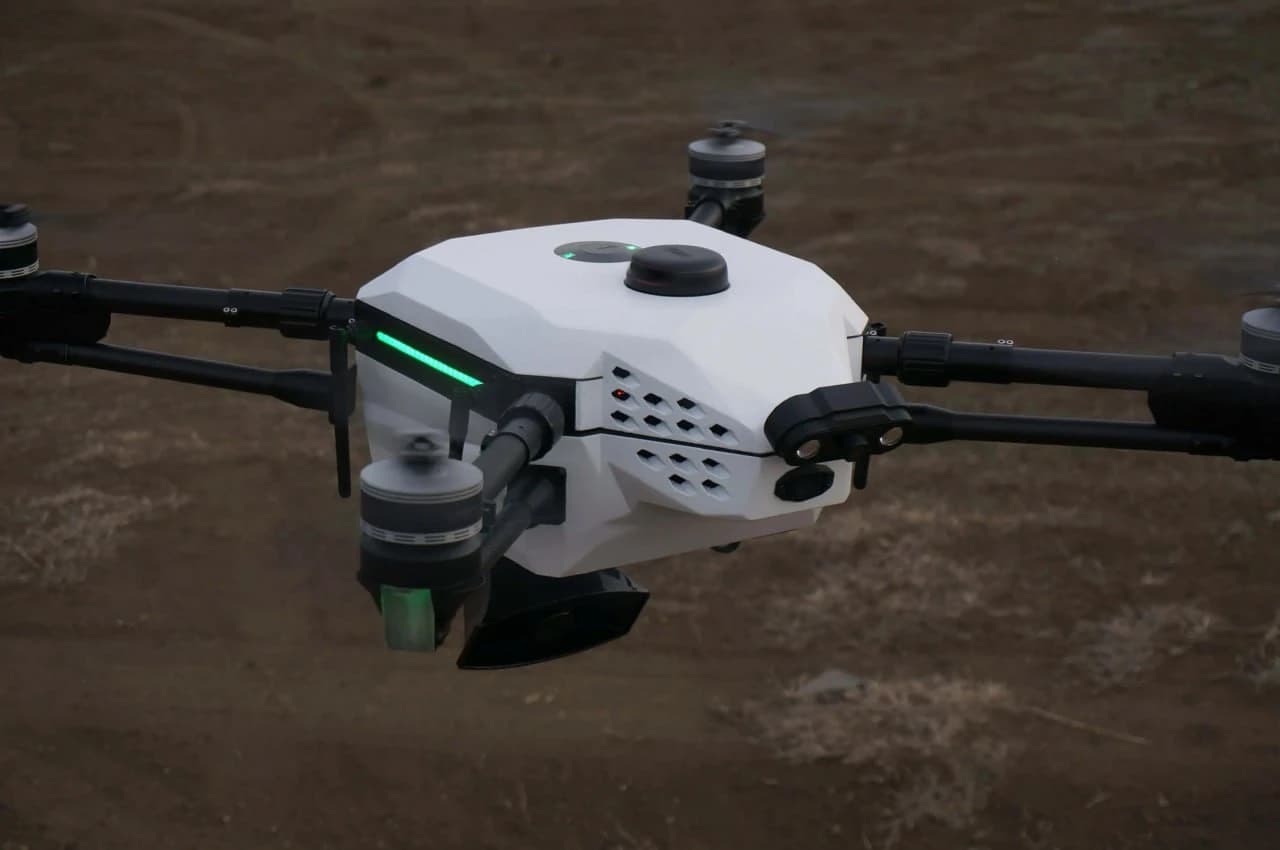

Ease of Operation
A truly capable and advanced drone, yet incredibly easy-to-use.

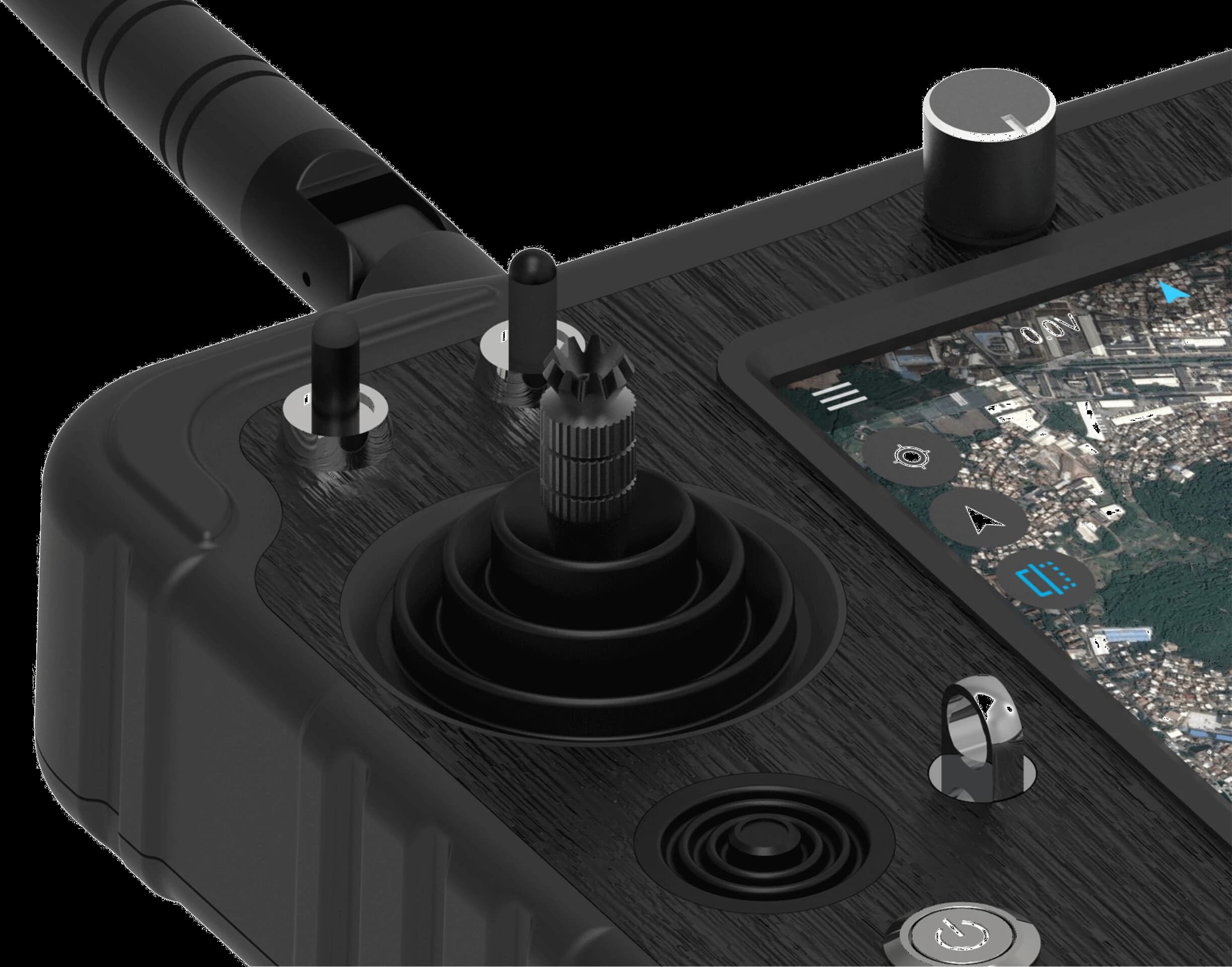

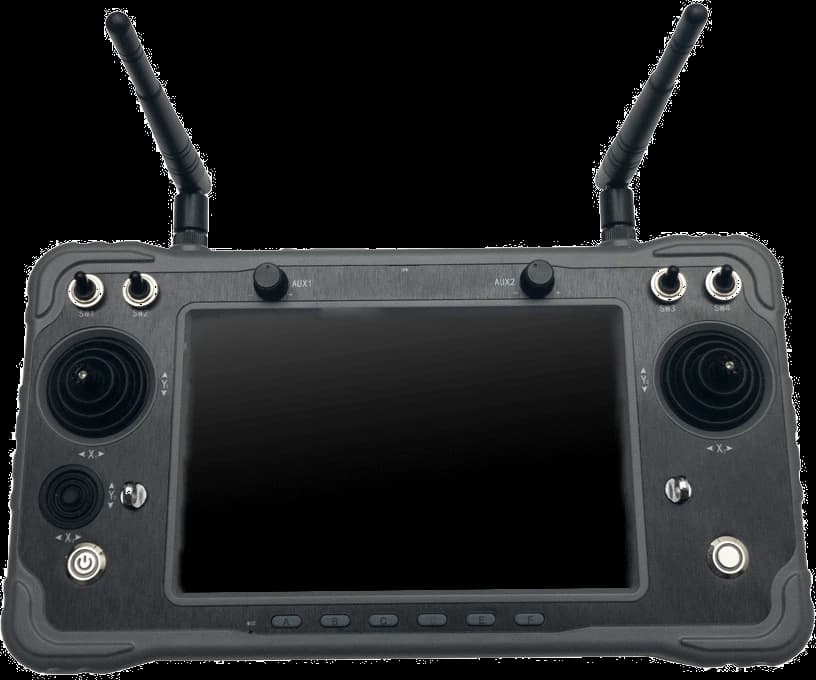

Ergonomic Flight Controls
From the layout of the flight controls to the position of the action buttons and the firmness that required to move the control sticks have all been carefully chosen.

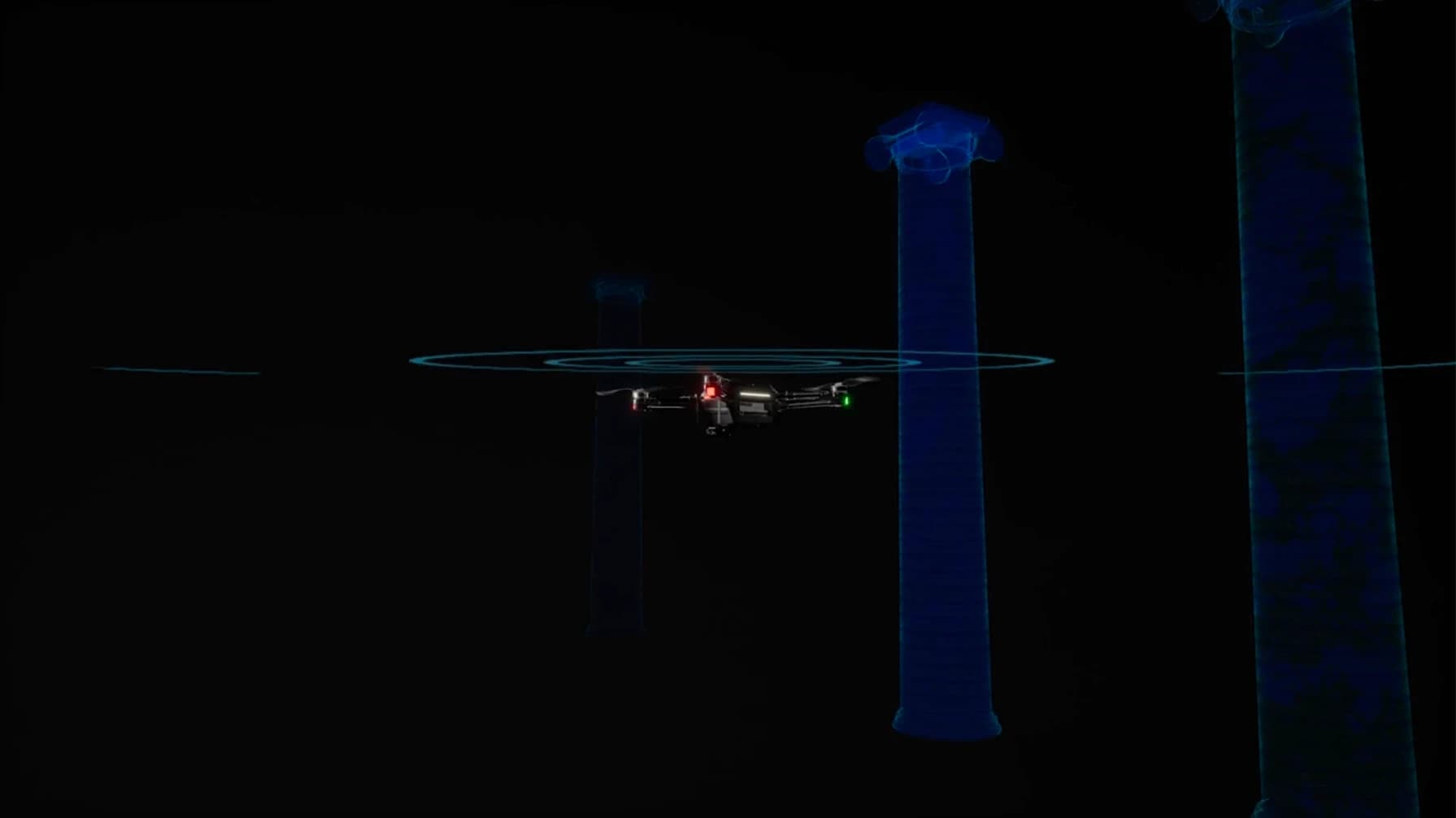

On Board Flight Aids
From a stability control module to all round obstacle sensor and various backup safety features are an ideal aid to the operator that allows for very easy piloting even in the harshest conditions.

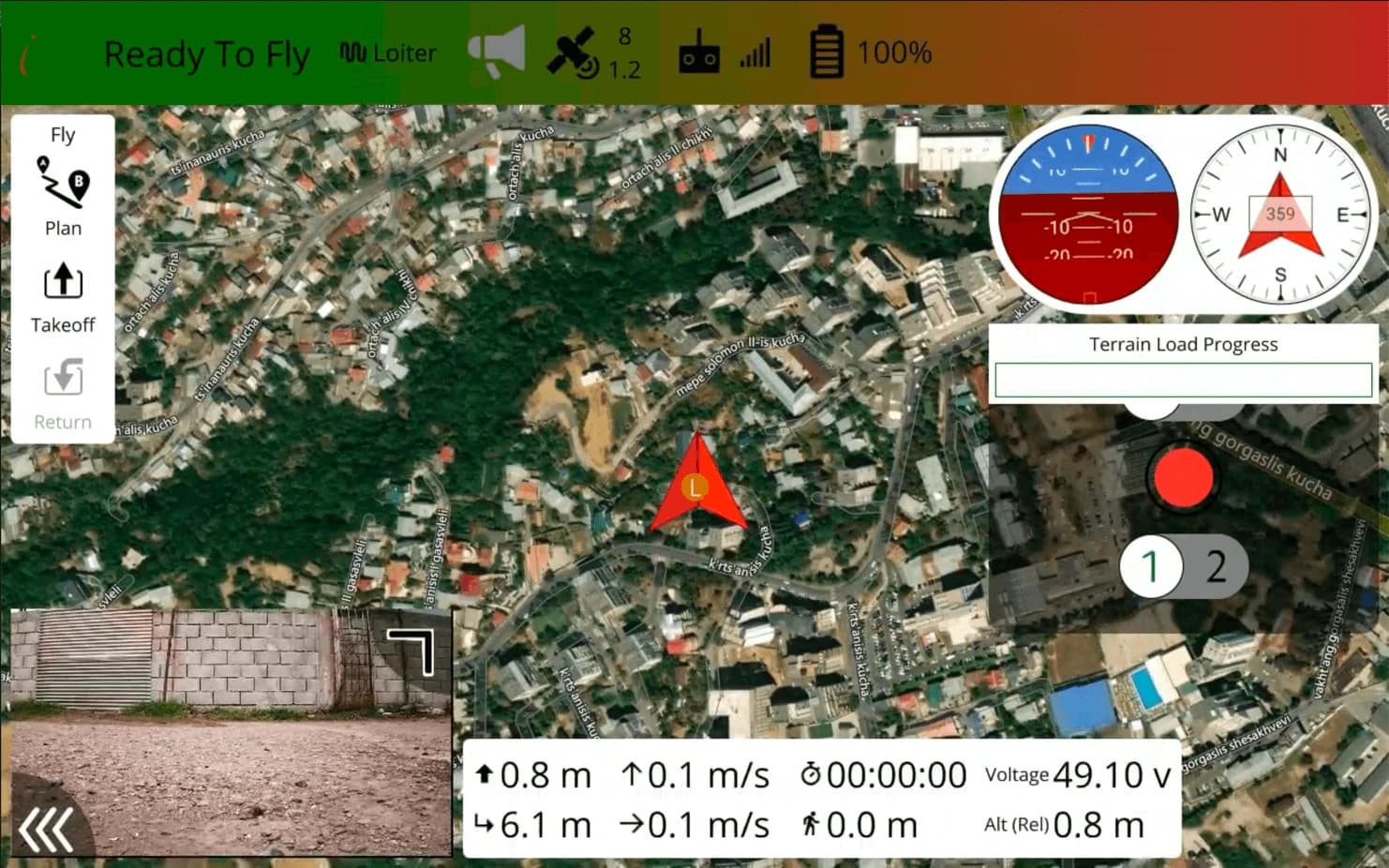

Autonomous Missions
Create a flight plan with various custom parameters and let the drone execute an entire flight mission from take off to cruise and landing.

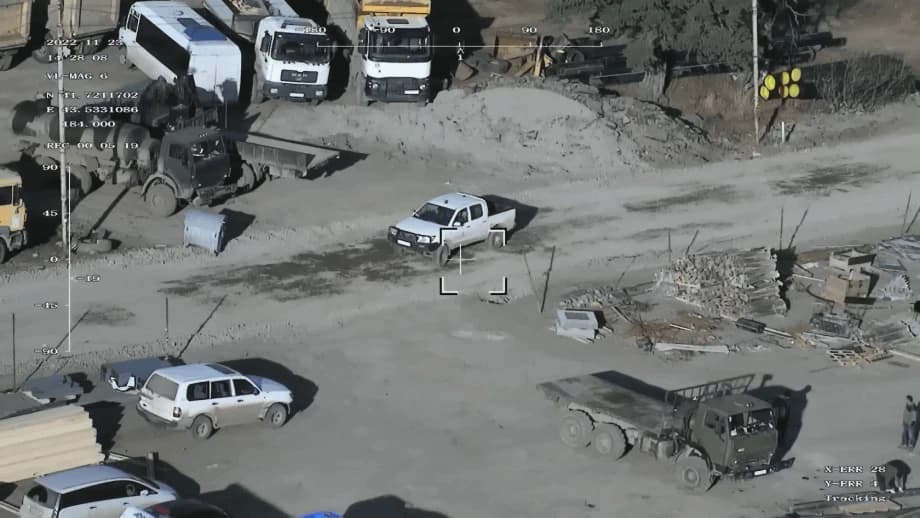

Smart Track
Chose a subject of interest on the screen of the remote controller and toggle a switch for camera to lock on to the chosen subject. Once camera locks on to the subject it will follow it and keep it in its sight.

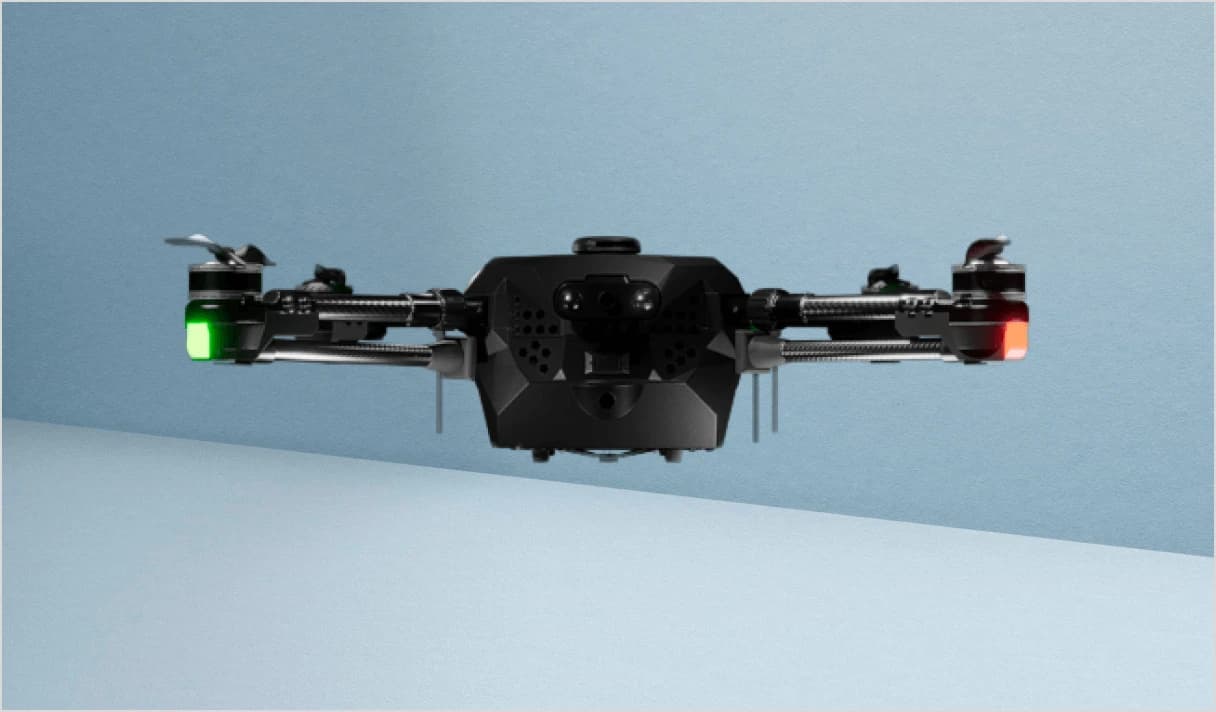

Retractable Gear
Retractable landing gear allows for an unobstructed 360° camera view as well as reduced drag that aid the flight time and performance.

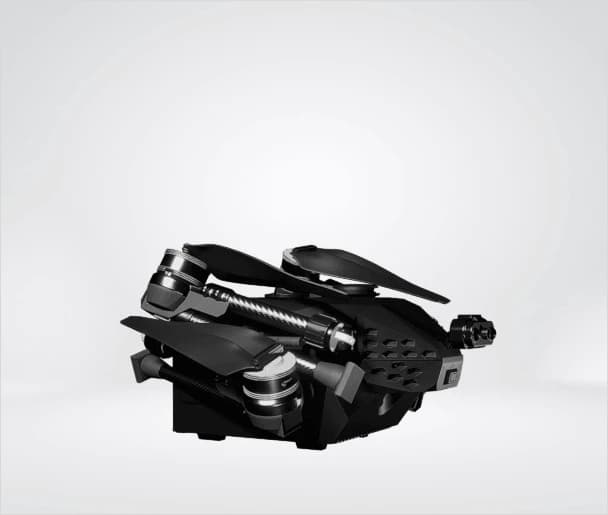

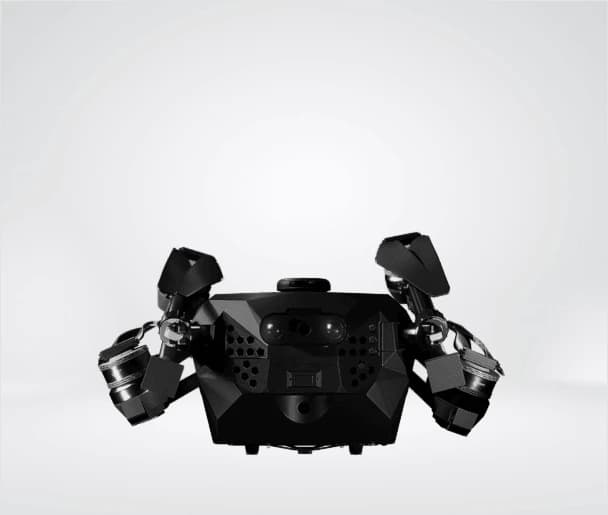

Dimensions
Incredibly portable for its size, the Vigil-6 has foldable arms, propellers and landing gear that makes it ideal for transportation.

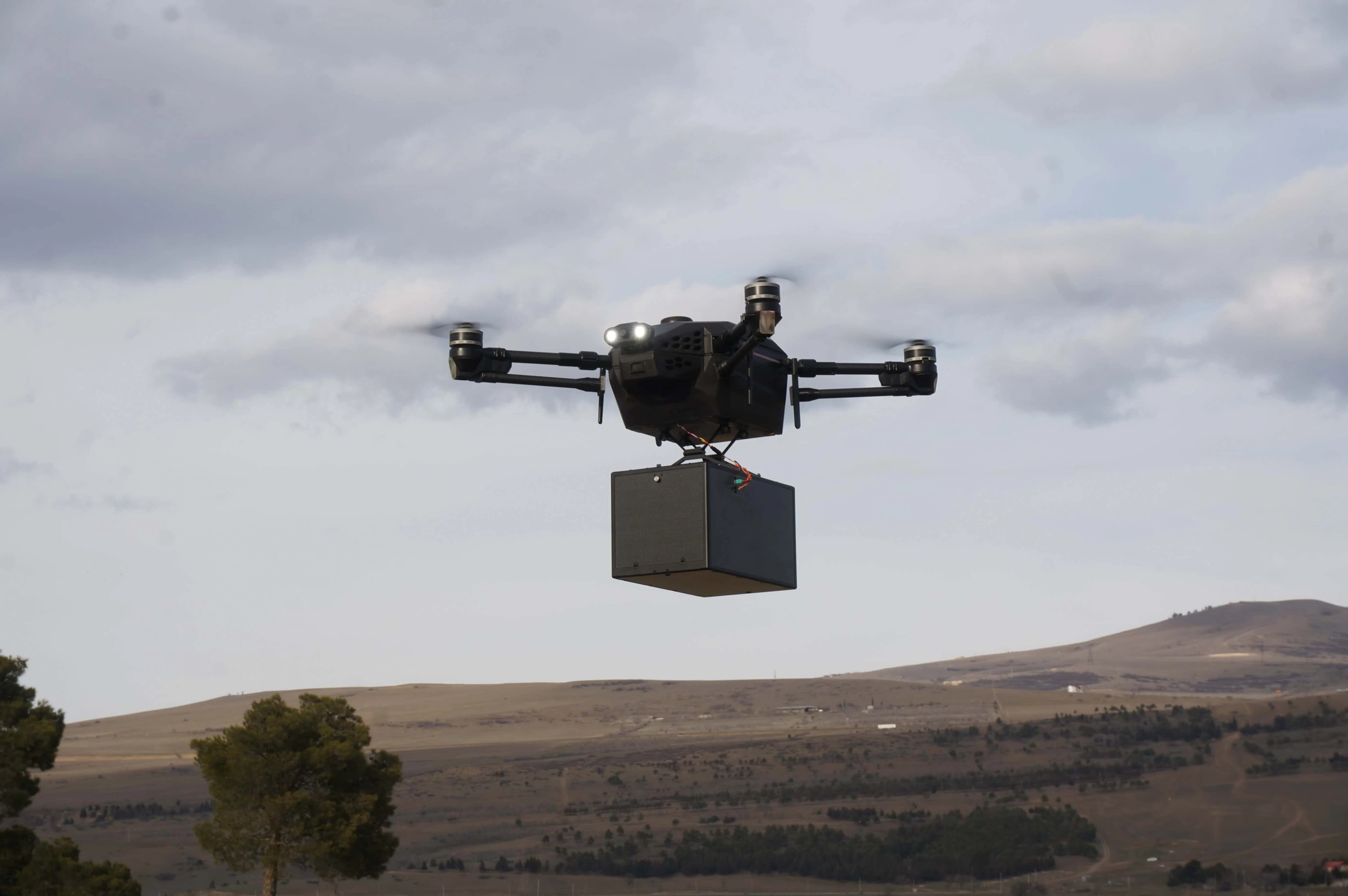

Payload

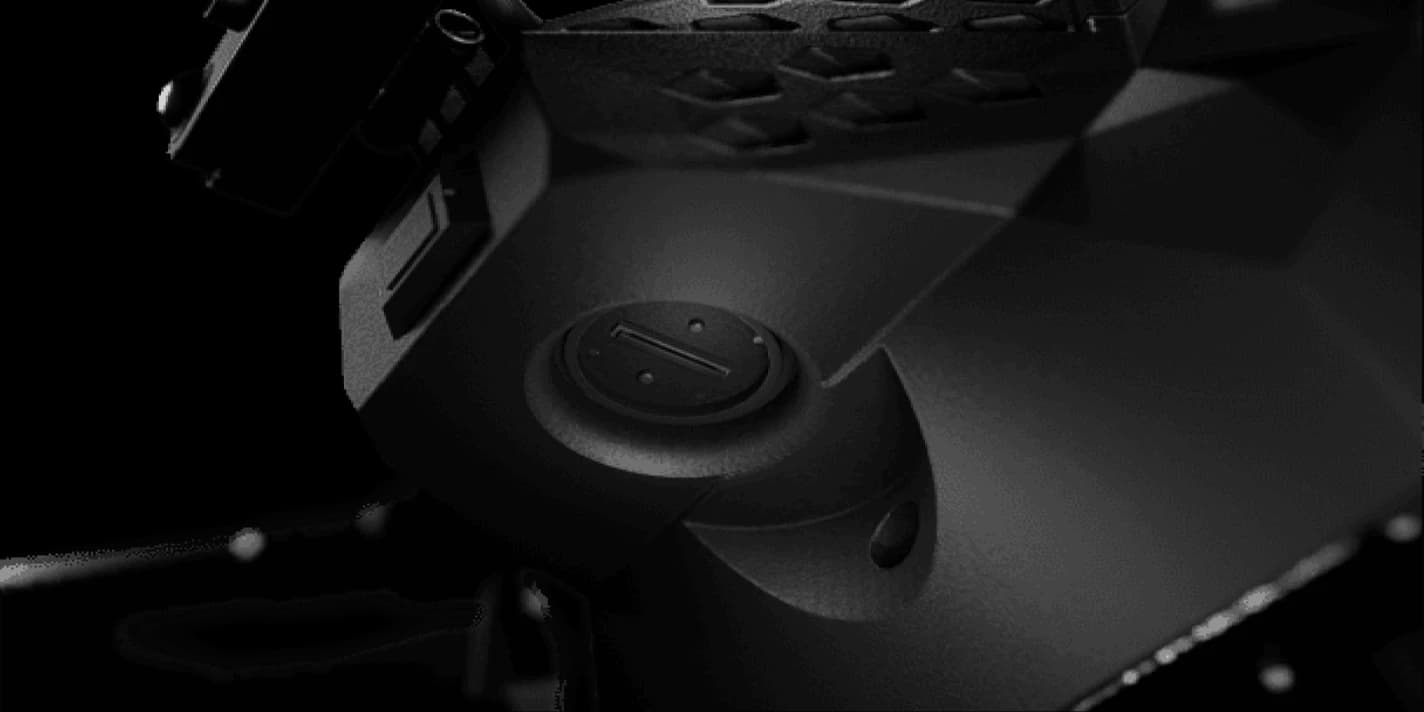

Universal Gimbal Port
Switch between any of our gimbal cameras, they are all compatible with our universal port. The simple and twist and click mechanism on our universal port allows for a quick and easy camera swaps.

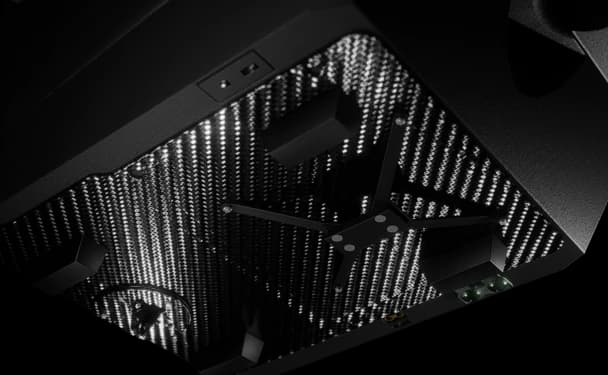

Universal Peripheral Attachment
Switch between any of our peripheral payloads, the special attachment points bellow the drone allow for quick and easy attachments and detachments. The special auxiliary port also allows for connecting peripheral payloads to power source.
Some of the Compatible Payloads
M30T
The M30T has an incredible 30X optical zoom with the SONY STARVIS CMOS sensor which supports starlight night vision and has super image stabilisation. It also includes a thermal imager with a resolution of 640*512.
MT50
MT50 is a 3-axis stabilised gimbal camera which is made from an aviation grade aluminium with a stronger anti-interference performance. With 50mm 12μm 640*512 Pixel IR thermal sensorthe IR detect range is up to 6000m.

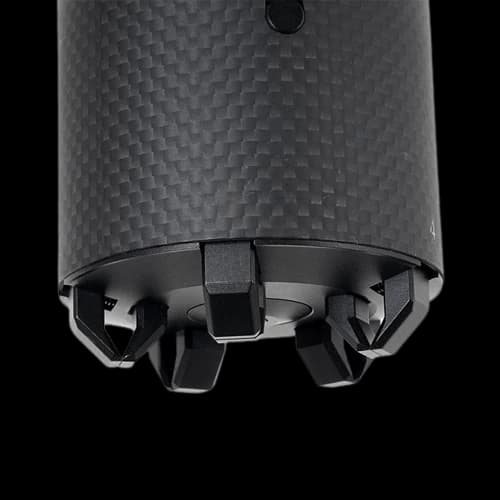

MD-5
MD-5 is a 5-stage (5 hooks) UAV airdrop device. The main body is composed of aviation grade aluminium and carbon fibre. Its characteristics are that it's light weight and has a max payload capacity of 5kgs per hook, within the platform's 6 kg payload limit.
Applications
Law Enforcement
Quickly assess a situation and plan accordingly while improving officers and bystanders safety.
Powerline Inspection
Easily and accurately inspect the power line network in remote areas.
Paramedics
Rapidly deploy the help where it is needed the most and help save lives.
Search Rescue
Act quickly to locate missing people and provide the life critical support while also helping in coordinating the rescue mission.
Firefighting
Fight fires and save lives without endangering personnel.

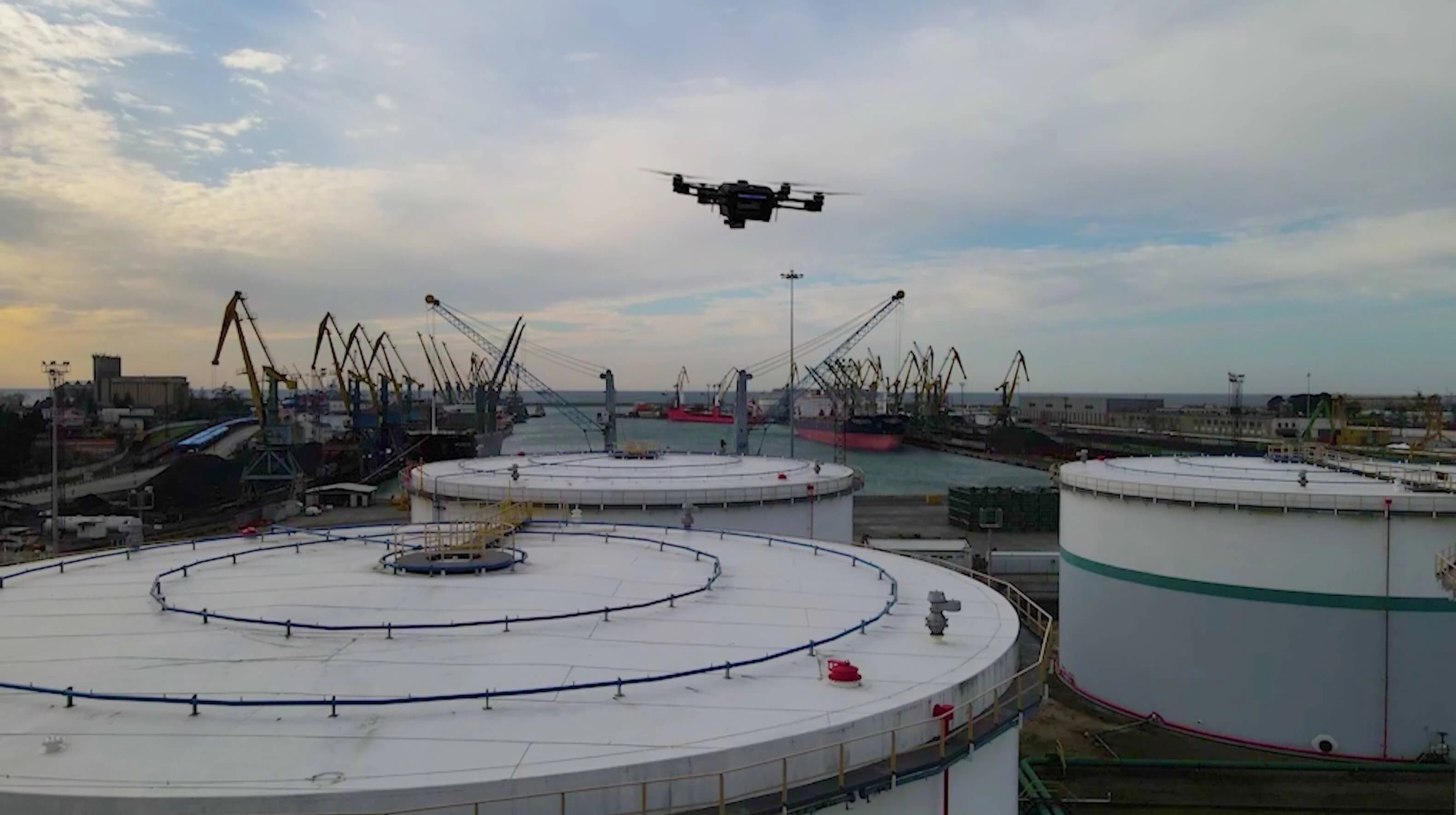

Oil and Gas
Conduct accurate and detailed inspection of pipelines, well sites and more while keeping workers away from risky areas.
Aerial Survey
Conduct aerial survey and digitise surveying workflows for an improved data accuracy and efficiency.
Urgent Supplies Delivery
Quickly and safely deliver critical supplies to where they are needed.
Private Security
Protect the private property by quickly identifying potential threats and aiding in the response while improving the safety and costs.
